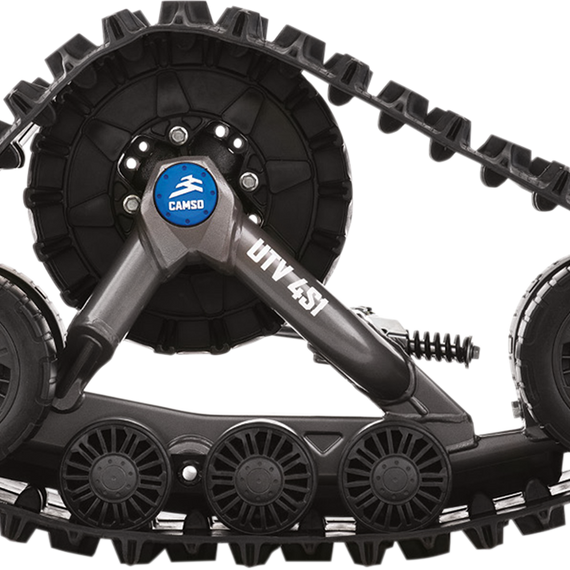

UTV 4S1 Track System
Caracteristicas: Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible Sturdier and more adjustable tensioner prevents critical part misalignment Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability New anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations
Peso: 0.01
Alto: 0.1
Largo: 0.1
Ancho: 0.1
Aditamentos:Ranger 800 Mid-Size EFI 4x4 : 2013-2014 Ranger XP 700 EFI 4x4 : 2008-2007 Specs:Front Track Width: 12-1/2"
Rear Height: 24-11/16"
Rear Track Length: 116-11/16"
Tooth Count: 15-18
Front Height: 25"
Front Track Length: 98-1/2"
Model: UTV 4S1
Rear Track Width: 14"
Riding Style: Snow
Riding Style: UTV
Ground Surface: 1,62 m² (2520 square inch)
Lug Height: 1-1/4"
Product Name: Track System
Type: Conversion
Ground Clearance: +5"
Units: Each
Peso: 0.01
Alto: 0.1
Largo: 0.1
Ancho: 0.1
Aditamentos:
Rear Height: 24-11/16"
Rear Track Length: 116-11/16"
Tooth Count: 15-18
Front Height: 25"
Front Track Length: 98-1/2"
Model: UTV 4S1
Rear Track Width: 14"
Riding Style: Snow
Riding Style: UTV
Ground Surface: 1,62 m² (2520 square inch)
Lug Height: 1-1/4"
Product Name: Track System
Type: Conversion
Ground Clearance: +5"
Units: Each
